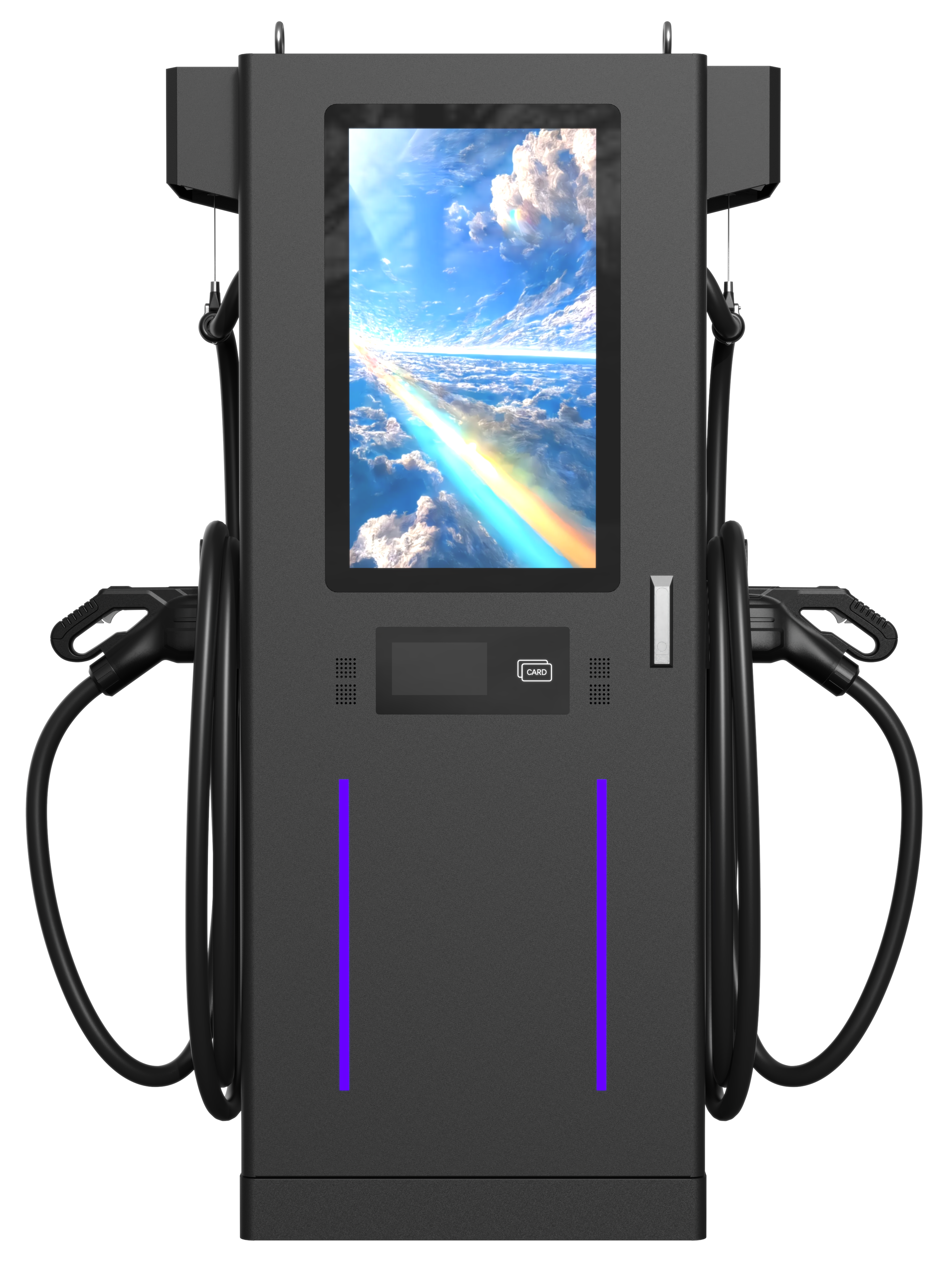

320kW to 400kW heavy-duty DC charger designed for electric trucks and commercial fleets. Optional massive 31.5" interactive advertising screen. Dual-gun smart allocation, modular design expandable to 600kW. IP55 protection, OCPP 1.6J protocol.
| Parameter | Model 1 | Model 2 | Model 3 |
|---|---|---|---|
| Model | CXE-D48 | CXE-D49 | CXE-D4A |
| Output Power | 320kW | 360kW | 400kW |
| Current Range | 0-250A | 0-250A | 0-250A |
| Input Voltage | AC400V ±20% | ||
| Frequency | 50/60Hz | ||
| Output Voltage | 200-1000VDC | ||
| Constant Power Range | 300-1000VDC | ||
| Charging Gun | 5m (customizable length) | ||
| Network | 4G / Ethernet / WiFi | ||
| Communication Protocol | OCPP 1.6J | ||
| Current Accuracy | ≤1% | ||
| HMI | 7" touchscreen (optional 31.5" advertising screen) | ||
| Peak Efficiency | 96% | ||
| Power Factor | ≥0.99 | ||
| Harmonic Current | ≤5% | ||
| Noise | ≤65dB | ||
| IP Grade | IP55 | ||
| Cooling | Fan cooling | ||
| Working Temp. | -30℃ ~ 50℃ | ||
| Altitude | ≤2000m | ||
| Dimensions (7" screen) | 750×720×1700mm | ||
| Dimensions (31.5" screen) | 1000×770×1900mm |
320-400kW ultra-high power for commercial fleets and buses. Dual-gun intelligent allocation — supports 250A×2 or single-gun 240kW output.
Massive advertising screen for fleet operators — high-visibility interface even in bright outdoor conditions. Perfect for truck charging stations.
Modular design supports power stacking upgrades, expandable to 600kW. Customized brand UI and payment integration.
Comprehensive safety protections. Electrostatic discharge and surge immunity Class 4. Optional cable management system.
Contact our sales team for pricing, customization options, or technical consultation. OEM/ODM services available.
